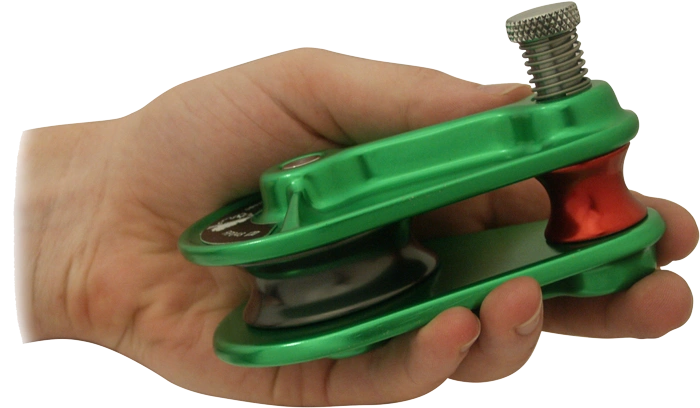

At approximately half the size of the standard small rigging pulley and weighing in at only 1 lb., this mini pulley fits in the palm of your hand.

The mini block offers a highly impressive strength to weight ratio with an 85kN (19000lbf) MBS and a WLL of 17kN (3800lbf).

The Pulley plates are made from hot forged Aluminum and it is this manufacturing process which allows such a compact pulley to boast such great strength and dynamic load bearing capacity.

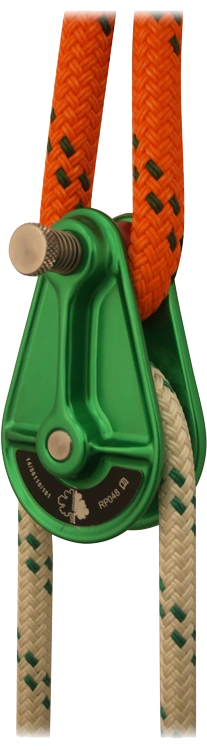

Working Line (Grey Sheave):
13mm (1/2') - 38kN (8500lbf)

Topping Strop (Red Sheave):
16mm (5/8') - 74kN (16650lbf)

The Compact Rigging Pulley is fitted with a spring-lock closure mechanism.
